Description

Product Overview

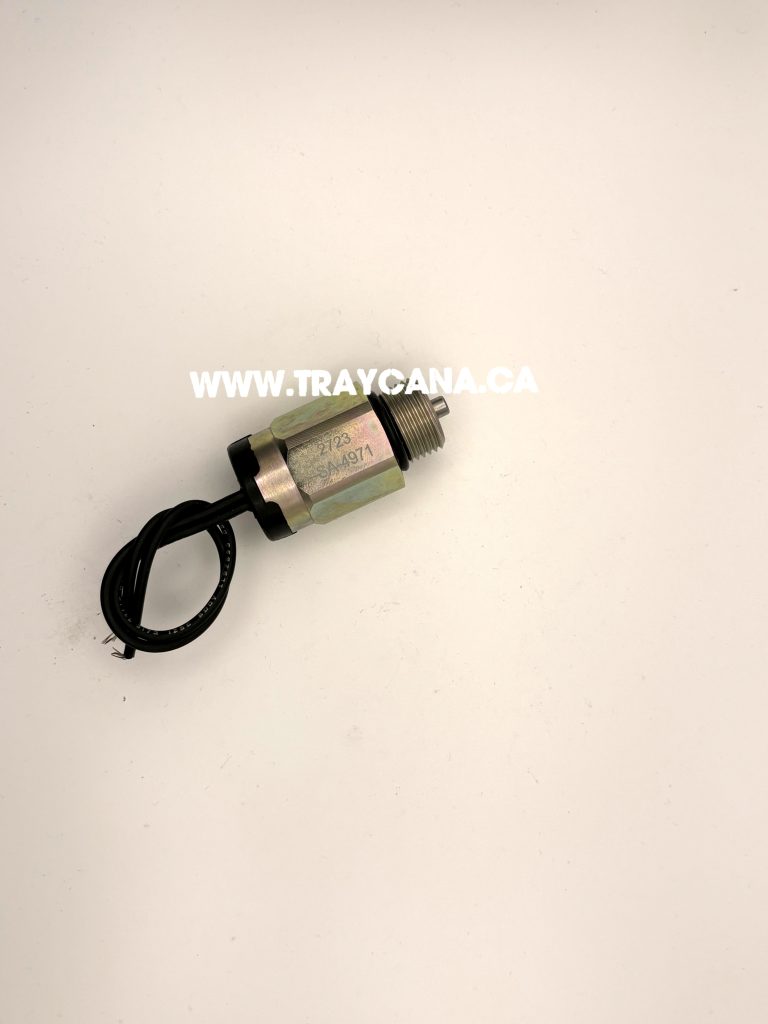

The 0100 Locking Solenoid is a Heavy-duty lock designed for side-load resistance in hydraulic or mechanical applications. Plunger can withstand 1500 pounds of side load in the de-energized position

Key Features

• Single coil construction for simple electrical interface
• Hardened, stainless steel pin resists high shear load and increases fatigue resistance
• Nickel plated plunger ensures smooth, reliable operation, as well as corrosion and wear resistance
• Protective brass liner plunger bore provides longer operating life
• Rugged construction allows for operation under the most severe temperature and vibration conditions
• Easy installation—no brackets or linkages necessary

Technical Specs

• Rated Voltage 12 VDC
• Rated Temperature 68˚F (20˚C)
• Temperature Range -40˚F to + 185˚F (-40˚C to +85˚C)
• Rated Stroke 0.17" (4.32 mm)
• Pull Current 100% duty @ 0.7 A
• Hold Current 100% duty @ 0.7 A
• Duty Cycle 100% @ 15.5 VDC max and 185˚F (85˚C)
• Pull Force Solenoid must pull in plunger against return spring at 9.5 VDC and 320˚F (160˚C) coil temperature, with no sideload on plunger pin
• Hold Force Solenoid must hold in plunger against return spring at 9.5 VDC and 320˚F (160˚C) coil temperature
• Pull Coil Resistance 17.8 ohms ± 10%
