Description

Product Overview

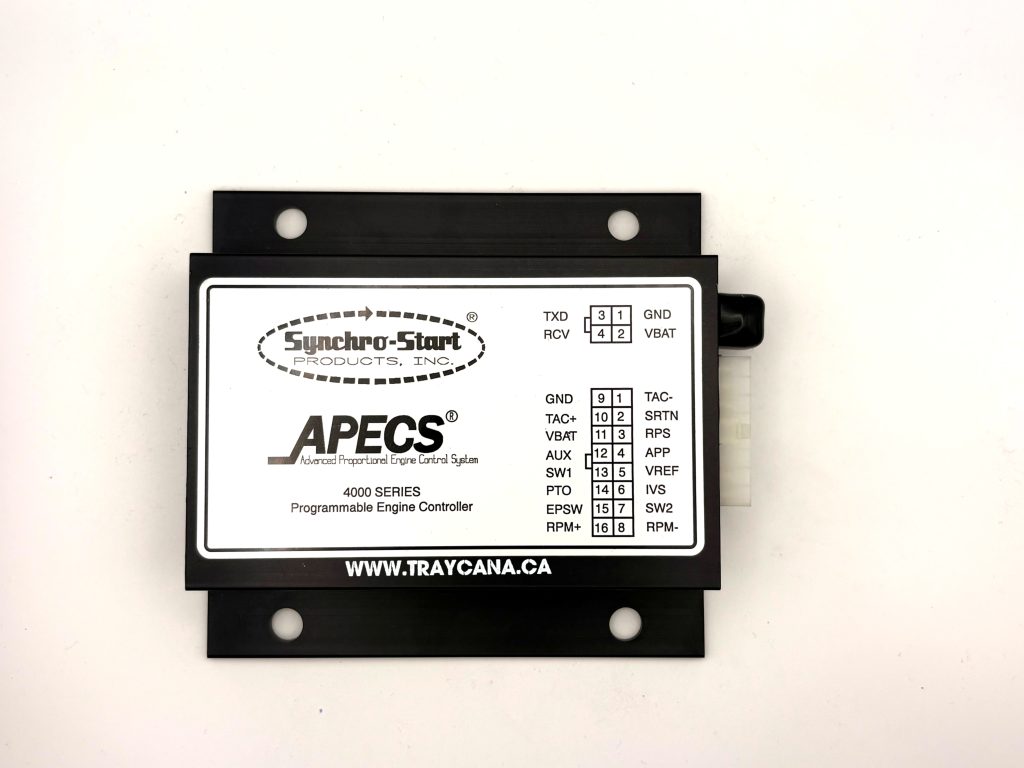

SA-4467 / APECS 4100 Controller expands Woodward’s line of programmable engine governors to address the needs of the stationary and mobile equipment industry. Enhanced input and output
capability, combined with a flexible configuration, permits APECS 4000 to easily adapt to a wide variety of engine governing applications.

Key Features

• User selectable isochronous or droop governing
• Analog input suitable for many uses:
  -Pedal position sensor with idle verification switch
  -Remote speed adjustments
  -Trim potentiometer
• Two switched inputs allow user to:
  -Program up to four discrete speeds and set ramp rates between speeds, or
  -Manually increase or decrease speed at preset rates with variable speed control
• PTO enable switch to select between pedal input and speed switches in mobile applications
• User selectable engine protection switch input (high coolant temperature, low oil pressure)
• Compatible with Woodward proportional actuators
• Auxiliary output configurable in several ways:
  -Engine shutdown
  -Crank disable
  -Remote status lamp
  -Autocrank
  -PTO enabled lamp
• User-friendly calibration tool:
  -Programmable PID gains
  -Programmable speed setpoints, ramp rates
  -Easy to calibrate using APECS start-up wizard
  -Graphical or numerical real time display
• Current protection limits current to the actuator to protect from overheating
• Status lamp (LED) signals normal engine running condition and diagnostics including overspeed and underspeed.
• Sealed, tamper-resistant enclosure, chemical resistant to most automotive oils and liquids.

Technical Notes

Electrical Specifications:
Supply Voltage 9–30 VDC, negative ground. Reverse polarity protected
Switch Inputs Two switch inputs, pre-programmable to select up to four speeds PTO switch Engine protection switch
Speed Sensing Magnetic pickup input, Ignition input, Magneto input, Hall effect sensor
Shock 20 G’s peak @ 45 Hz
Vibration 6 G’s from 40-2000 Hz
Electromagnetic Interface (EMI) 30V/m 20-1000M Hz

Mechanical Specifications:
Connector Molex part no. 39-30-1160 Mates with Molex part no. 39-01-2160 (not supplied with controller) Terminals required 16 AWG part no. 39-00-0078 18-24 AWG part no. 39-00-0039
External Analog Input Trim, set speed with pot and drive-by-wire with IVS option
Output to Actuator Pulse width modulated 8 A maximum
Temperature -40˚F to 185˚F (-40˚C to 85˚C)
Weight 1.18 lb (0.54 kg)
Calibration Requires interface adapter and software for calibration setup
